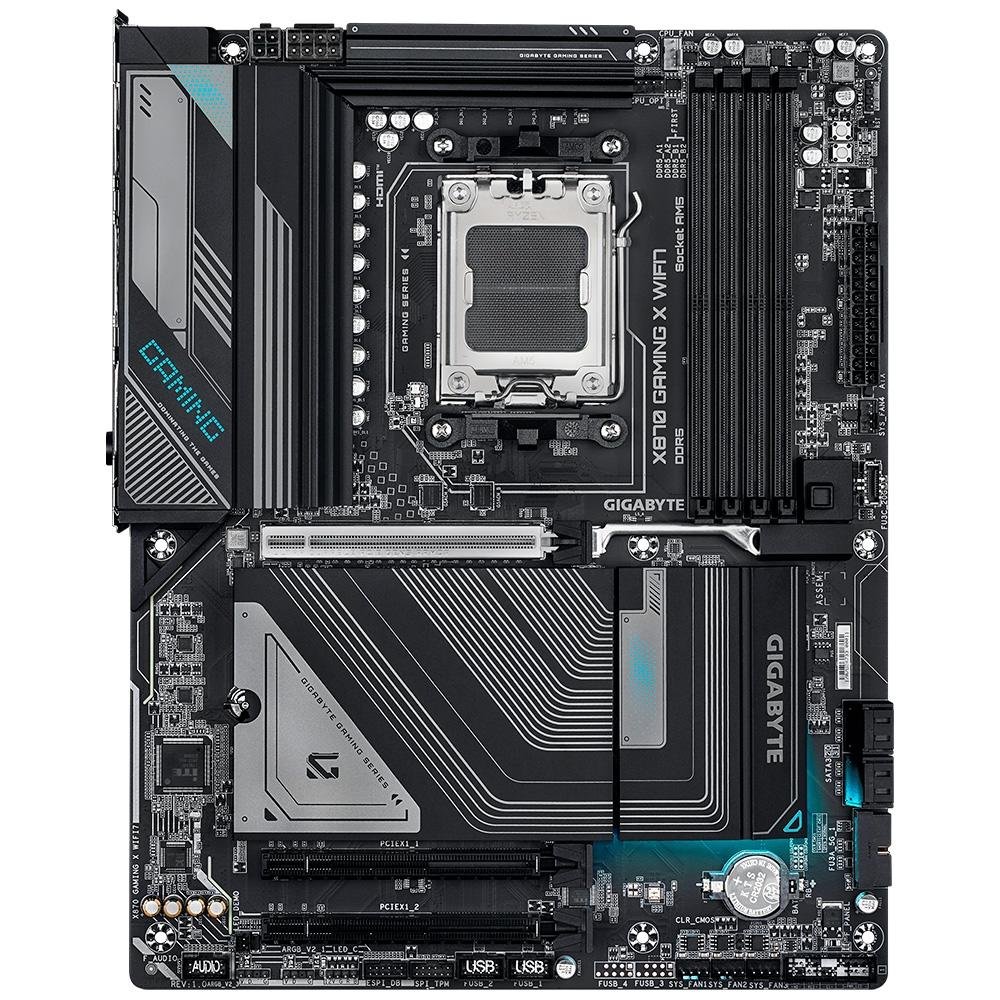

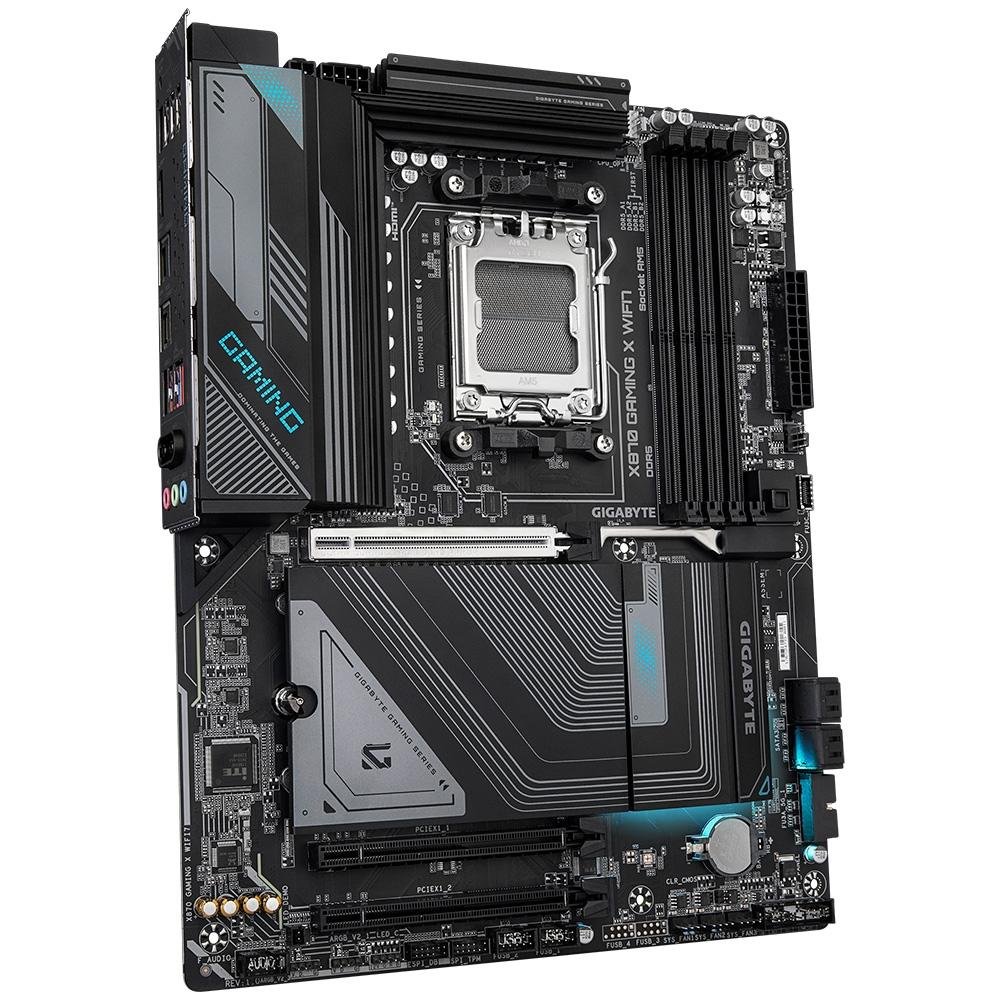

Placa Mãe Gigabyte X870 GAMING X WIFI7, AMD AM5, ATX, DDR5, LED RGB, Bluetooth, Wi-Fi 7 - X870 GAMING X WIFI7

Características:

- Marca: Gigabyte

- Modelo: X870 GAMING X WIFI7

Especificações:

CPU

- AMD Socket AM5, support for:

- AMD Ryzen™ 9000 Series Processors/

- AMD Ryzen™ 8000 Series Processors/

- AMD Ryzen™ 7000 Series Processors

(Go to GIGABYTE's website for the latest CPU support list.)

Chipset

- AMD X870

Memória

- Support for DDR5 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules

- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

- Dual channel memory architecture

- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

(The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

Gráficos Onboard

Integrated Graphics Processor with AMD Radeon™ Graphics support+ASMedia USB4® Controller:

- 2 x USB4® USB Type-C® ports, supporting USB4 and DisplayPort video outputs and a maximum resolution of 3840x2160@240 Hz

* Support for DisplayPort 1.4 version and HDR.

Integrated Graphics Processor with AMD Radeon™ Graphics support:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.1 version, HDCP 2.3, and HDR.

** Support native HDMI 2.1 TMDS compatible ports.

(Graphics specifications may vary depending on CPU support.)

Áudio

- Realtek® Audio CODEC

- High Definition Audio

- 2/4/5.1/7.1-channel

* You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

LAN

- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication module

MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard

Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard

(Actual data rate may vary depending on environment and equipment.)

* Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for Windows 10.)

** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.

Slots de Expansão

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode

- AMD Ryzen™ 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode

- AMD Ryzen™ 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode

* The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

Interface de Armazenamento

1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

- AMD Ryzen™ 8000 Series- Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs

- AMD Ryzen™ 8000 Series- Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

- 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs

- 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs

* The M2B_SB connector shares bandwidth with the M2C_SB connector. The M2C_SB connector will become unavailable when an PCIe 4.0 x4 SSD is installed in the M2B_SB connector.

- 4 x SATA 6Gb/s connectors

- RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

* RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.

** RAID 0, RAID 1, and RAID 10 support for SATA storage devices

USB

CPU+ASMedia USB4 controller:

- 2 x USB4® USB Type-C® ports on the back panel

CPU:

- 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

- 1 x USB 3.2 Gen 1 port on the back panel

CPU+USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports on the back panel

Chipset:

- 1 x USB Type-C® port with USB 3.2 Gen 2x2 support, available through the internal USB header

- 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

- 4 x USB 2.0/1.1 ports available through the internal USB headers

Conectores Internos I/O

- 1 x 24-pin ATX main power connector

- 1 x 8-pin ATX 12V power connector

- 1 x 4-pin ATX 12V power connector

- 1 x CPU fan header

- 1 x CPU fan/water cooling pump header

- 4 x system fan headers

- 3 x addressable RGB Gen2 LED strip headers

- 1 x RGB LED strip header

- 4 x SATA 6Gb/s connectors

- 3 x M.2 Socket 3 connectors

- 1 x front panel header

- 1 x front panel audio header

- 1 x USB Type-C® header, with USB 3.2 Gen 2x2 support

- 1 x USB 3.2 Gen 1 header

- 2 x USB 2.0/1.1 headers

- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

- 1 x power button

- 1 x reset button

- 1 x reset jumper

- 1 x Clear CMOS jumper

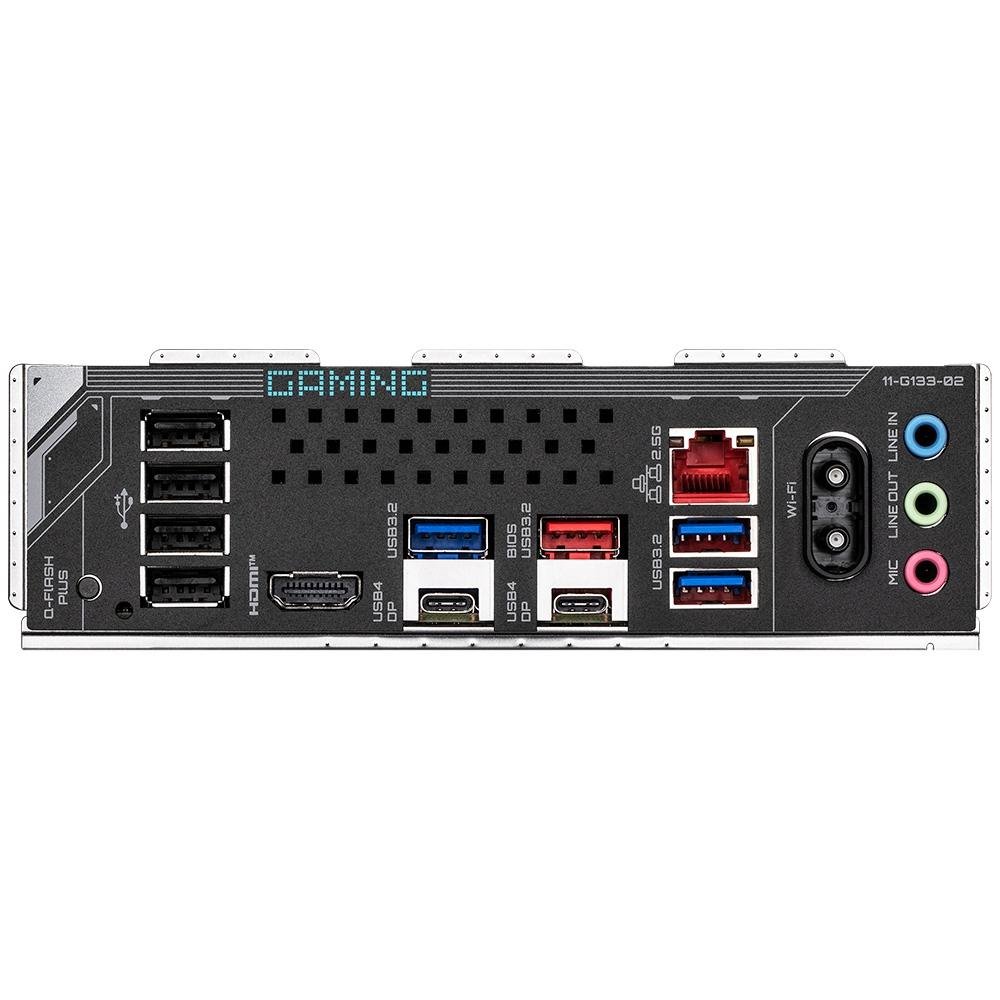

Conectores Painel Traseiro

- 1 x Q-Flash Plus button

- 2 x antenna connectors (2T2R)

- 1 x HDMI port(Note)

- 2 x USB4® USB Type-C® ports (DisplayPort*)

- 1 x USB 3.2 Gen 2 Type-A port (red)

- 3 x USB 3.2 Gen 1 ports

- 4 x USB 2.0/1.1 ports

- 1 x RJ-45 port

- 3 x audio jacks

* Actual support may vary by CPU.

Controlador I/O

- iTE® I/O Controller Chip

Monitoramento H/W

- Voltage detection

- Temperature detection

- Fan speed detection

- Water cooling flow rate detection

- Fan fail warning

- Fan speed control

* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS

- 1 x 256 Mbit flash

- Use of licensed AMI UEFI BIOS

- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Características Exclusivas

- Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.

- Support for Q-Flash

- Support for Q-Flash Plus

- Support for Smart Backup

Pacote de Software

- Norton® Internet Security (OEM version)

- LAN bandwidth management software

Sistema Operacional

- Support for Windows 11 64-bit

Form Factor

- ATX Form Factor; 30.5cm x 24.4cm

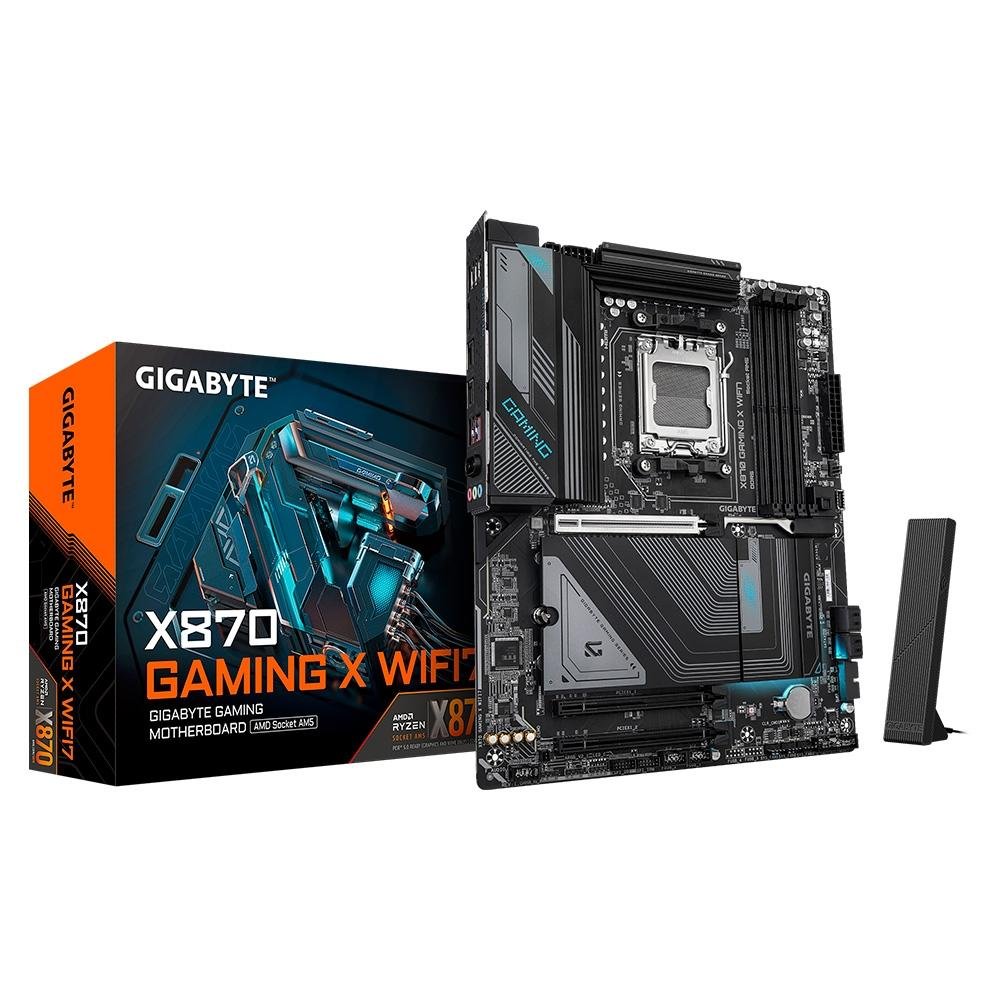

Conteúdo da Embalagem:

- Placa Mãe Gigabyte X870 GAMING X WIFI7
